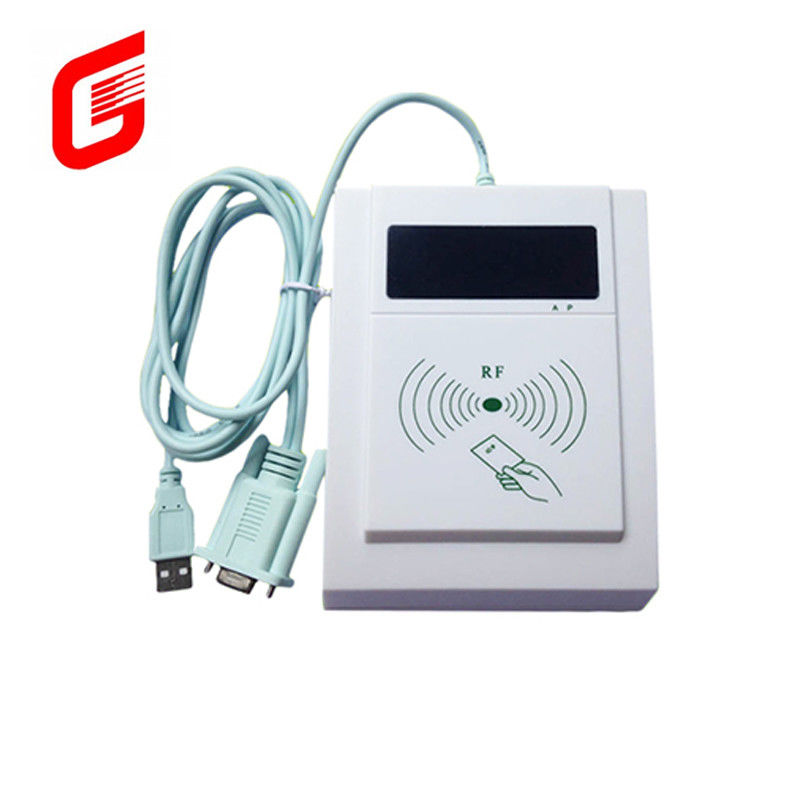

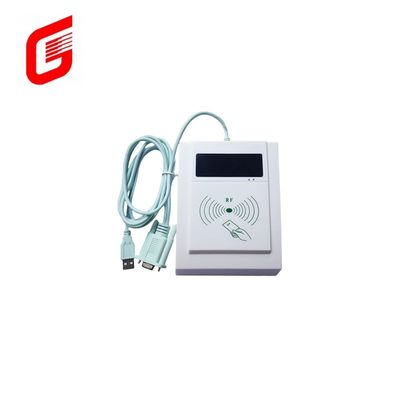

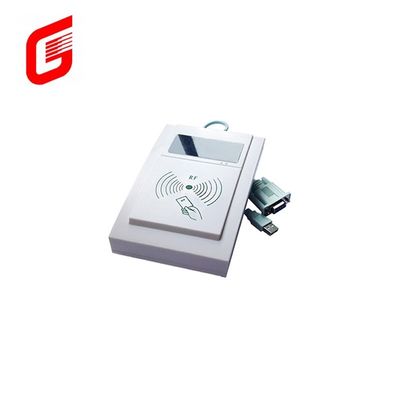

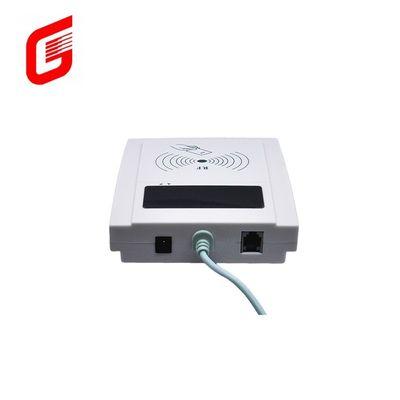

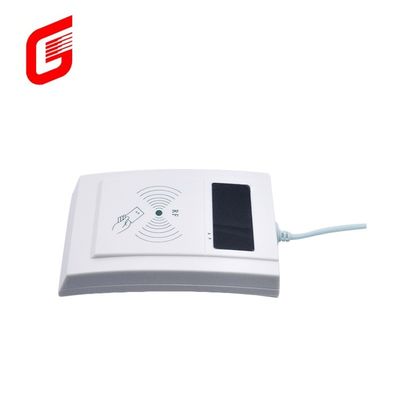

Built-in Antenna Manufacture Prepaid RF Contactless Multi-function Smart Card Reader White
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | GS |
| Certification: | .. |
| Model Number: | RF |
Payment & Shipping Terms:
| Price: | $60.00/pieces 1-99 pieces |
|---|---|
| Packaging Details: | Export Carton with Product packing and Foam inside |
| Supply Ability: | 5000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Other Type | Interface: | Usb, RS232/USB (Plug And Play)/TTLlevel/485 And PC/SC |
|---|---|---|---|
| Card Slots: | Single | Installation: | External |
| Material: | ABS, Plastic | Antenna: | Built-in Antenna |
| Case Material: | ABS Plastic | Application: | Multi-function |
| Color: | White | Dimensions: | 123 * 95 * 27 Mm |
| WEIGHT: | 143g / 345g | Power Supply: | DC5V ± 10% |
| Standards: | ISO14443 TypeA/B, ISO15693, ISO7816,GSM11.11 | Support Cards: | ISO14443 TypeA/B,ISO15693 Standard |
| Port: | ChongQing | ||
Product Description
1.1 Overview
RF Card Reader Writer with multi-function for reading card, which support three protocols compliance to the standard ISO14443A/B, ISO15693. It offers option for the 8 bit LEDs(time, clock can be set up), a buzzer or an LCD (2-line graphic LCD), which both provide users with a clear indication of the reader's
status.
RF integrated the technology for reading RFID contactless card and contact card.It also offers an optional built-in Security Access Module (SAM) slot which supports various high security applications, up to 2(SAM slot. Four ways for connection with PC by USB/RS232/485/TCP-IP,which provides user a simple, and ease fast operation.
RF Series Reader Writer are wildly used in different application according to the user‟s requirements such as payment systems and electronic identification, time attendance access control, Software locking, Loyalty Program ,Stored value ,Identification ,Ticketing ,Parking and toll collection ,Online gaming, Automatic Fare Collection, Physical Access Control.
RF Card Reader Writer with multi-function for reading card, which support three protocols compliance to the standard ISO14443A/B, ISO15693. It offers option for the 8 bit LEDs(time, clock can be set up), a buzzer or an LCD (2-line graphic LCD), which both provide users with a clear indication of the reader's
status.
RF integrated the technology for reading RFID contactless card and contact card.It also offers an optional built-in Security Access Module (SAM) slot which supports various high security applications, up to 2(SAM slot. Four ways for connection with PC by USB/RS232/485/TCP-IP,which provides user a simple, and ease fast operation.
RF Series Reader Writer are wildly used in different application according to the user‟s requirements such as payment systems and electronic identification, time attendance access control, Software locking, Loyalty Program ,Stored value ,Identification ,Ticketing ,Parking and toll collection ,Online gaming, Automatic Fare Collection, Physical Access Control.
1.2 Features |
Cardtype supported: —contactless card: ISO14443TypeA/B,ISO15693 standard —contact card: ISO7816logic encryption IC cards andthe CPU card(T=0,1) Security: can add 2 GSM11.11SAM card slots Interface: RS232/USB (Plug and Play)/TTLlevel/485 and PC/SC Antenna: Built-in antenna CaseMaterial: ABS plastic Operating Frequency: 13.56MHz Operating voltage: DC5V ± 10% Communication speed between Card and equipment: 106Kbit Operating temperature: -20 ℃ ~ 60 ℃ Standards followed: ISO14443TypeA/B, ISO15693, ISO7816,GSM11.11, Programming languages: a variety of programming languages available, with luxuriant Examples (refer to "1.5 Software" for more information) OS: Windows 98, Me,2K, XP, 2003, Vista ,Unix and Linux Memoryof reader: the standardinternal memory of reader is 2K bytes (can be expanded upon customers‟ requirements) Status display: LED lights, indicating power or the state of communication, user controllable buzzer Connection cable: length 1.5M, can choose serial KLine or usb cable Dimensions(L*W*H): 123 * 95 * 27 mm NW/GW:about 143g / 345g |
1.3 Device Interface
RS232 Serial Interface or USB been used for communicating with PC.
1.4 Reader Packing List
Contains: Reader, Communication cable, CD for driver, and Warranty Card.
RS232 Serial Interface or USB been used for communicating with PC.
1.4 Reader Packing List
Contains: Reader, Communication cable, CD for driver, and Warranty Card.
