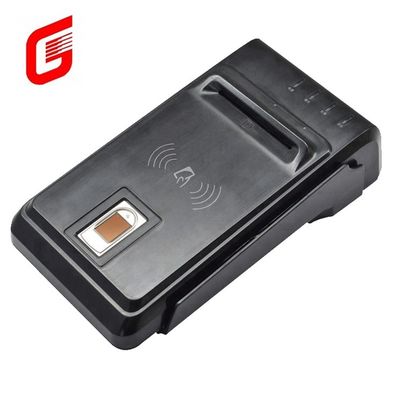

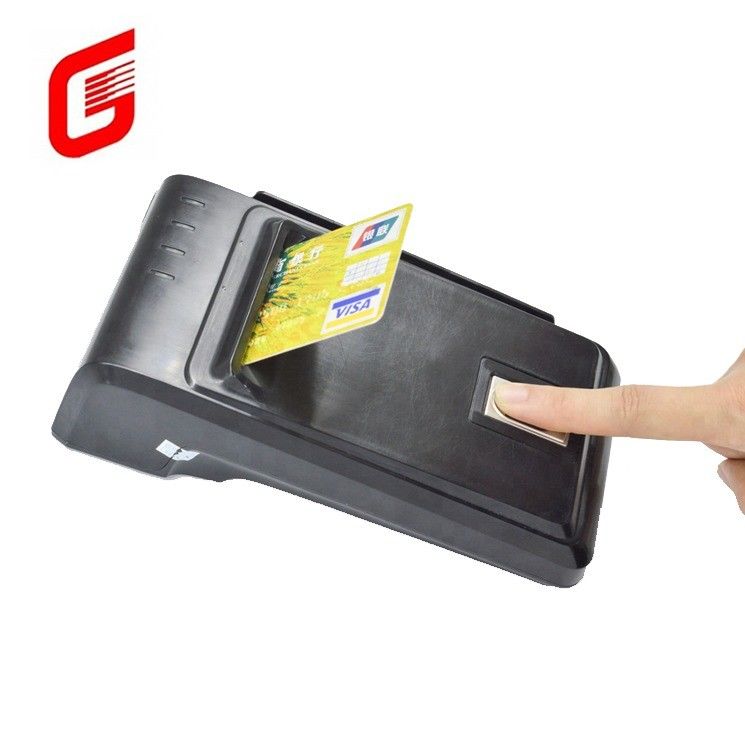

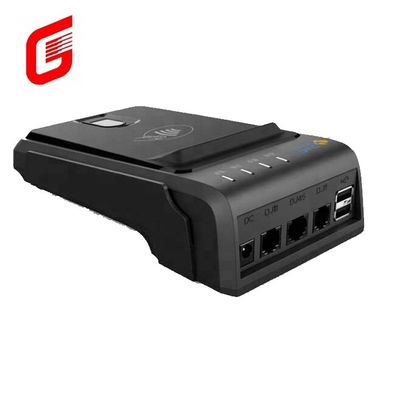

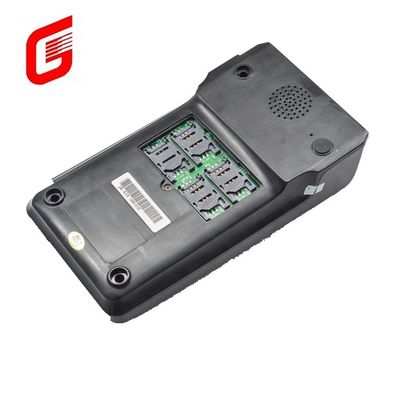

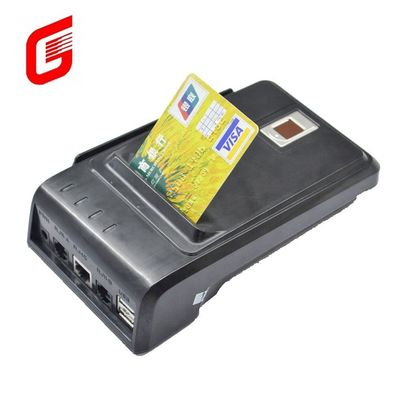

1kg T10-S All In One 4G Fingerprint Identification Contact Contactless Smart Card Reader Writer
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | GS |
| Certification: | // |
| Model Number: | T10-S |
Payment & Shipping Terms:
| Price: | $360.00/pieces 1-49 pieces |
|---|---|
| Supply Ability: | 20000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Other Type | Interface: | Usb |
|---|---|---|---|
| Card Slots: | Single | Installation: | External |
| Material: | ABS, Plastic | Dimensions: | 186mm * 102.5mm * 52mm |
| WEIGHT: | 1kg | Central Processing Unit: | 32-bit CPU |
| Indicator: | 4 LED Indicators | Buzzer: | Support |
| Communication Interface: | RS232, USB | Read Magnetic Stripe Card: | 1/2/3 Track Track Reading, Two-way Swipe, Single-sided Swipe |
| Contact Card: | Support 1 ISO / IEC 7816 Standard Card | Contactless Card: | Inductive IC Card, Mifare Card |
| SAM Card Holder: | 4 SAM Cards In Accordance With ISO / IEC 7816 | Port: | ChongQing |
Product Description
Product introduction
T10-S is a multi-function reader that integrates magnetic stripe, contact, and non-contact reading and writing. It can also collect and compare fingerprint information. It is suitable for deployment when you need to operate social security cards, financial IC cards, two Application sites for multi-cards such as fingerprints.
This product has a certain built-in memory, which can be used for configuration data storage in system design. It supports PSAM security authentication in the machine, so as to be used in identity authentication occasions with high security requirements.
The product passes the bank card testing center, EMV, health planning commission, and the Ministry of Human Resources and Social Security. It can operate financial IC cards, resident health cards, and social security cards. It is a powerful high-end reader.
T10-S is a multi-function reader that integrates magnetic stripe, contact, and non-contact reading and writing. It can also collect and compare fingerprint information. It is suitable for deployment when you need to operate social security cards, financial IC cards, two Application sites for multi-cards such as fingerprints.
This product has a certain built-in memory, which can be used for configuration data storage in system design. It supports PSAM security authentication in the machine, so as to be used in identity authentication occasions with high security requirements.
The product passes the bank card testing center, EMV, health planning commission, and the Ministry of Human Resources and Social Security. It can operate financial IC cards, resident health cards, and social security cards. It is a powerful high-end reader.
Product Features
² Magnetic stripe, contact and non-contact read and write functions
² Set fingerprint information collection and comparison function
² Meets qPBOC 3.0, social security certification, resident health card certification
² Meet social and public safety product certification, resident identity card reading equipment products
² Magnetic stripe, contact and non-contact read and write functions
² Set fingerprint information collection and comparison function
² Meets qPBOC 3.0, social security certification, resident health card certification
² Meet social and public safety product certification, resident identity card reading equipment products
Technical specifications | ||
Product name | T10-S Second Generation Multi-in-one Social Security Card Reader | |
Central Processing Unit | 32-bit CPU | |
Indicator | 4 LED indicators | |
Buzzer | Support | |
Voice support | Voice broadcast | |
Communication interface | RS232, USB | |
Read magnetic stripe card | 1/2/3 track track reading, two-way swipe, single-sided swipe | |
Contact card | support 1 ISO / IEC 7816 standard card | |
Contactless card | Inductive IC card, Mifare card in compliance with ISO / IEC 14443 Type A / B standard | |
SAM card holder | 4 SAM cards in accordance with ISO / IEC 7816 | |
Encryption chip | support one ESAM | |
Read the second-generation card | support reading the second-generation card information, the card reading distance is not less than 3cm | |
Wireless module | support Bluetooth communication (4.0 / 2.0) / CDMA / GPRS / WIFI | |
Fingerprint module | support the collection and comparison of fingerprint information support FPC sensor and TCS1 sensor compatible | |
Power supply | external DC 9V 1A power supply | |
Real-time clock | support built-in real-time clock | |
Operating system | Windows XP, 7, 8, Linux | |
Working environment | Temperature: 20 ° C ~ 60 ° C relative humidity: 5% ~ 93%(non-condensing) | |
Storage environment | temperature: -25 ℃ ~ 65 ℃ relative humidity: 5% ~ 95% (non-condensing) | |
Physical size | 186mm × 102.5mm × 52mm | |
Weight | 1kg | |
Other features | Provide a common interface function library, support multiple operating systems and language development platforms support online upgrade | |
Meet the standards | PBOC 3.0 L1, qPBOC 3.0 L1, Ministry of Human Resources and Social Affairs, Ministry of Housing and Urban-Rural Development, Health Planning Commission | |
