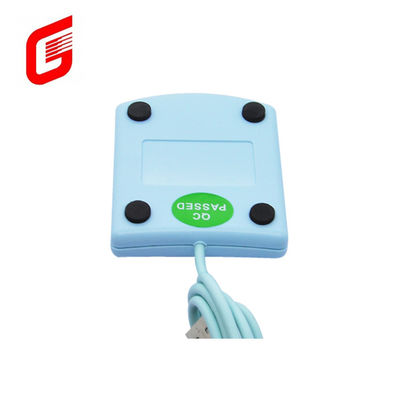

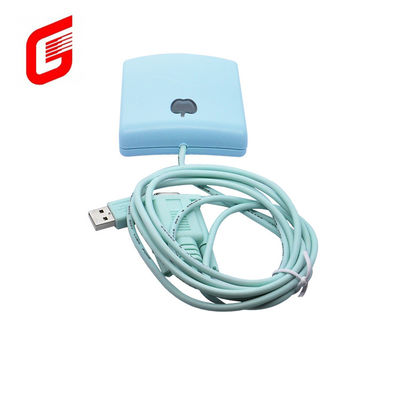

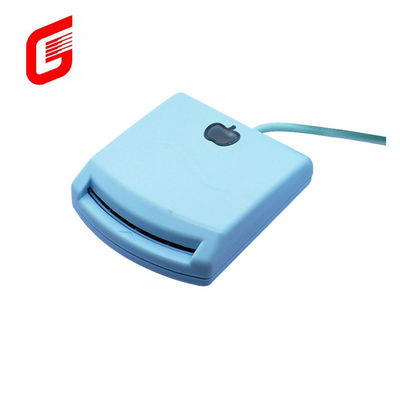

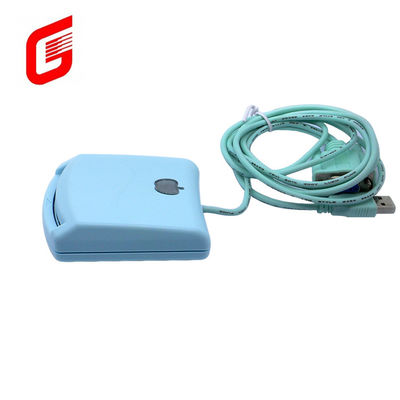

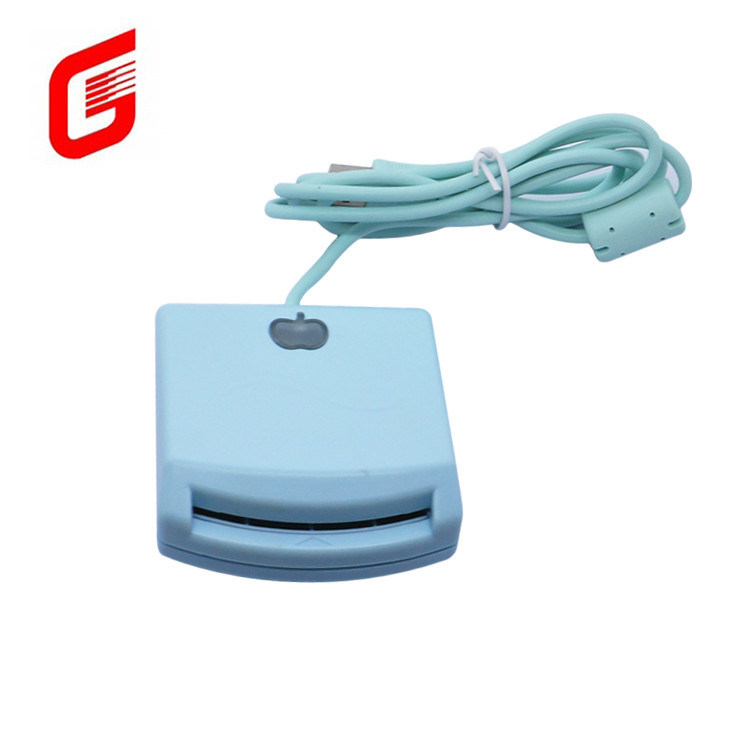

Professional S3 Series Contact IC Card Reader for Working Level 0°- 70°C Environments
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | GS |
| Certification: | . |
| Model Number: | S3 |
Payment & Shipping Terms:
| Price: | $35.00/pieces 1-99 pieces |
|---|---|
| Packaging Details: | 1pcs/box,20pcs/carton |
| Supply Ability: | 2000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Other Type | Interface: | Usb |
|---|---|---|---|
| Card Slots: | All In 1 / Multi In 1 | Installation: | External |
| Material: | ABS, Plastic | Dimensions: | 80mm * 70mm * 25mm |
| WEIGHT: | 200g | Communication Interface: | Meet USB 1.1 Version Of The Universal Serial Bus Specification |
| The Maximum Speed Of USB Protocol: | 12Mbit / S | Maximum Power Consumption: | 100 MW |
| Relative Humidity: | 30% ~ 95% | Anti-magnetic Interference: | 19 Oster |
| Industrial Level: | -25° ~ 85° C | Working Level: | 0°~ 70°C |
| Port: | Chongqing | ||
Product Description
1. Overview
Our company is a high-tech enterprise with developing IC card relevant equipment as the main products. Since S3 series card reader products appeared, through continuous improvement, the company has introduced thousands of different types of reader. It is fully functional, stable, compatible
with the popular and mainstream reader manufacturers, we have increased functionality of the SAM card operation for S3 series the reader based on the original. Can be easily applied to industrial, commercial, postal services, taxation, banking, insurance, medical, and other fees, stored value, inquiry
management system and so on.
The card-type that S3 Series contact IC card reader can read-write are as follows:
1.1. memory (Memory) Card
☆U.S. ATMEL Corporation AT24C01A/24C02/24C04/24C08/24C16/A24C64,AT93C46/93C46A, AT45DB041, AT88SC102, AT88SC1604/AT88SC1604B.
☆ SIEMENS, Germany's 4442, 4428 cards.
1.2. CPU card (meet T = 0 / T = 1 communication protocol)
☆ Can read and write a variety of Memory card and CPU card that support T = 0, T = 1 communication protocol;
☆ Support SAM card operation;
☆ Communication baud rate is 9600BPS;
☆ For SAM cards users, can choose a small deck built-in reader,or choose a large deck through the slot operation.
☆ Provide the interface functions of various development platforms and application examples.
with the popular and mainstream reader manufacturers, we have increased functionality of the SAM card operation for S3 series the reader based on the original. Can be easily applied to industrial, commercial, postal services, taxation, banking, insurance, medical, and other fees, stored value, inquiry
management system and so on.
The card-type that S3 Series contact IC card reader can read-write are as follows:
1.1. memory (Memory) Card
☆U.S. ATMEL Corporation AT24C01A/24C02/24C04/24C08/24C16/A24C64,AT93C46/93C46A, AT45DB041, AT88SC102, AT88SC1604/AT88SC1604B.
☆ SIEMENS, Germany's 4442, 4428 cards.
1.2. CPU card (meet T = 0 / T = 1 communication protocol)
☆ Can read and write a variety of Memory card and CPU card that support T = 0, T = 1 communication protocol;
☆ Support SAM card operation;
☆ Communication baud rate is 9600BPS;
☆ For SAM cards users, can choose a small deck built-in reader,or choose a large deck through the slot operation.
☆ Provide the interface functions of various development platforms and application examples.
2. Packing List
Contains：Reader, installation disk, and Warranty Card.
3. Reader Connection
Connect the Reader’s USB interface directly to the computer’s USB interface
4. Indicator
Two-color indicator：
Red: user card has been inserted, the Reader are operating on the user
card when flashes Red
Green: User card is not inserted
3. Reader Connection
Connect the Reader’s USB interface directly to the computer’s USB interface
4. Indicator
Two-color indicator：
Red: user card has been inserted, the Reader are operating on the user
card when flashes Red
Green: User card is not inserted
5. Techinical Specifications ☆ Communication Interface:meet USB 1.1 version of the Universal Serial Bus specification ☆ Themaximum speed of USB protocol is 12Mbit / S ☆ Can achieve high-speed parallel interface with any external microcontroller / microprocessor ☆ Good EMI characteristics of bus-powered capability ☆ Internal power-on reset and low voltage reset circuit ☆ Power: taking power from the USB port , have no power itself ☆ Maximum Power Consumption: 100 mW ☆ temperature: Working level 0°~ 70°C ; Industrial level -25° ~ 85° C ☆ Relative Humidity: 30% ~ 95% ☆ Anti-magnetic interference: 19 Oster ☆ Anti-vibration resistance: the amplitudeof 0.35mm, frequency 10-55Hz, sweep the three-axis vibration ☆ Insulation Resistance: In humid circumstance (40°, 95%)insulation resistance shall be not less than 5MΩ. ☆ Dimensions: L × W × H 80mm × 70mm× 25mm |
