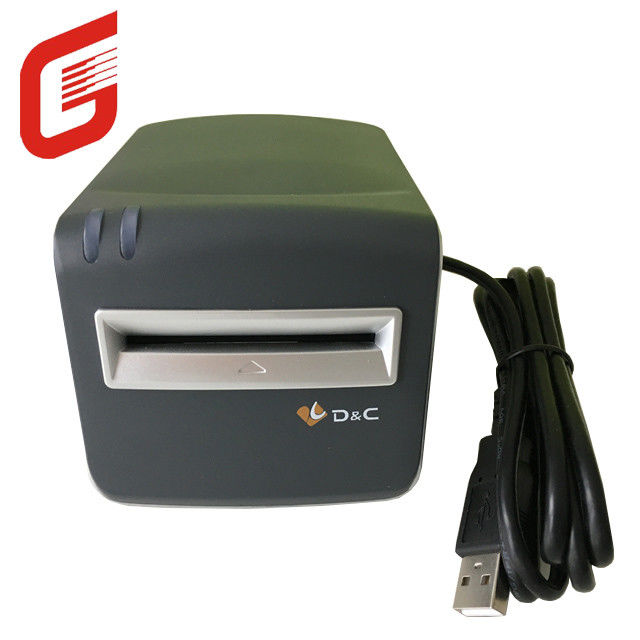

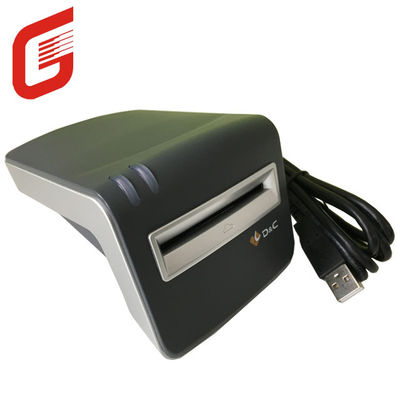

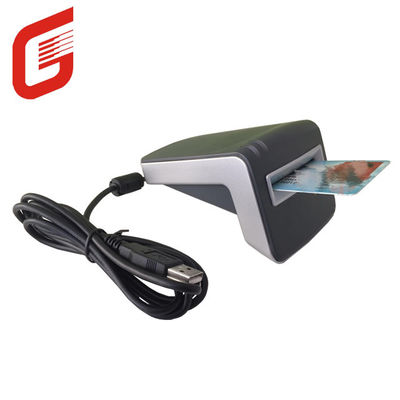

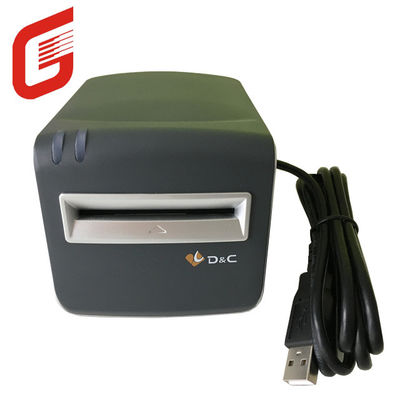

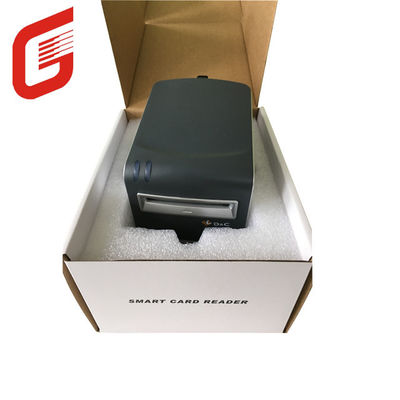

140mm*83mm*60mm External Installation D C T6-U-I Contact IC Smart Card Reader Favorite
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | D&C |
| Certification: | .. |
| Model Number: | T6-U-I |
Payment & Shipping Terms:
| Price: | $65.00/pieces 1-49 pieces |
|---|---|
| Supply Ability: | 2000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Other Type | Interface: | Usb |
|---|---|---|---|
| Card Slots: | All In 1 / Multi In 1 | Installation: | External |
| Material: | ABS, Plastic | Weight: | 350g |
| Dimensions: | 140mm*83mm*60mm | Temperature Range: | -20 To +60℃ |
| Mobile Storage Capacity: | Optional 16M, 32M, 64M Or Custom | Can Supply Current To The Card: | 0-70mA |
| Communication Type With PC: | RS232 | Connecting Cable: | 1.5M Long USB Cable |
| Port: | Chongqing | ||
Product Description

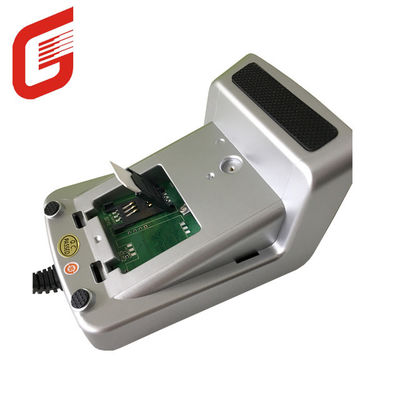

The Datacard T6-U-I contact IC card reader can be selected from RS232 interface or USB interface. The USB interface adopts drive-free technology and uses drop-type card holder. The Datacard T6-U-I is compact and ergonomically designed with one-handed plug-and-pull card for easy operation and is suitable for counter-business with frequent card use. The Datacard T6-U-I reader supports up to four decks. The main card holder is used for ordinary routine use. The auxiliary card holder can be easily inserted into the administrator card to play the role of authentication and management. It solves the problem that most reader/writer authentication cards must use the built-in SAM card. For compatibility and multi-party authentication, a built-in SAM deck has been added.
The outstanding feature of the Datacard T6-U-I contact reader is the integrated U disk function and reader encryption. The USB flash drive function stores software and data and runs automatically. The reader encryption function can encrypt the reader and make the system control more secure. Datacard T6-U-I contact IC card reading and writing machine is a necessary front-end processing device for IC card system integration, which greatly improves the security and application convenience of the system, and can better serve the industrial and commercial, telecommunications, postal, tax, Bank, insurance, medical care and various smart card management application systems such as charging, stored value and inquiries.
The outstanding feature of the Datacard T6-U-I contact reader is the integrated U disk function and reader encryption. The USB flash drive function stores software and data and runs automatically. The reader encryption function can encrypt the reader and make the system control more secure. Datacard T6-U-I contact IC card reading and writing machine is a necessary front-end processing device for IC card system integration, which greatly improves the security and application convenience of the system, and can better serve the industrial and commercial, telecommunications, postal, tax, Bank, insurance, medical care and various smart card management application systems such as charging, stored value and inquiries.
Product Name: T6-U-I card reader Weight: 350g Shape specification: 140mm*83mm*60mm Temperature range: -20 to +60 ℃ Card contacts can be used: 200,000 times Support card size: Supports up to two ISO7816 standard card sizes, and can add two SIM size compliant SAM cards for GSM 11.11 (optional) Mobile storage capacity: optional 16M, 32M, 64M or custom Encryption function: optional Can supply current to the card: 0-70mA Communication type with PC: RS232 Low Speed USB (USB 1.1) driverless technology Communication protocol: support CPU card with T=0, T=1 Support all common memory cards, logical encryption cards The communication speed of the same card can reach 115,200 bps Standards to be followed: ISO 7816-3, PC/SC, GSM 11.11, FCC, CE Communication rate: T=0:9600-38400bps T=1:9600-115200bps Appearance color: general picture, can be customized according to user needs Connecting cable: 1.5M long USB cable Status display: two-color LED indicator indicating power or communication status Operating system: Windows 98, Me, 2K, XP, 2003 and Unix and Linux Other features: Provide a common interface function library to support multiple operating systems and language development platforms Support online upgrade: Provide customized development of middleware such as CSP and PKCS#11 Provide security software application customization such as Windows Login and VPN |
