USB or Serial port E7 Chip Card Reader Writer with PIN PAD Other Type Compatible
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | GS |
| Certification: | // |
| Model Number: | E7-UC-13-A0 |
Payment & Shipping Terms:
| Price: | $88.00/pieces 1-99 pieces |
|---|---|
| Packaging Details: | Export Carton with Product packing and Foam inside |
| Supply Ability: | 5000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Other Type | Interface: | Usb |
|---|---|---|---|
| Card Slots: | Single | Installation: | External |
| Material: | ABS, Plastic | Support Card Type: | MF1ICS50,FM1108,MF1ICS70,contactless CPU Card\contact CPU Card |
| Support Protocol: | ISO14443 A/ ISO7816 | Recognition Distance: | 0-50mm |
| Physical Interface: | USB | Communication Rate: | 9600bps~115200bps |
| Operating System: | Windows 98 , Me , 2K , XP , 2003,Vista , Linux | Working Frequency: | 13.56MHZ |
| Working Voltage: | DC5V ± 10% | Data Storage Capacity: | The Standard Configuration Of Storage Is 2K Bytes In The Reader |
| Port: | ChongQing | ||
Product Description
1. Overview

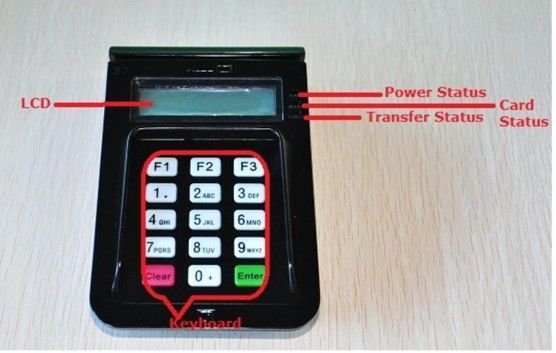

E7 password keyboard is the smart IC Card Reader，meet ISO14443A and ISO 7816 standard， support contactless IC card，such as Mifare s50、s70、Utrlight and CPU card，and contact CPU card. E7 smart IC Reader contains LCD display（2 rows）and simple keyboard,，that meet the demand of entering the password or consumption data and displaying the results in the processing of user’s operation. And E7 smart IC Reader supports USB interface that meets HID protocol. In order to improve safety factor, users can configurate a standard SAM card that meets ISO 7816-3 and GSM11.11 protocol in the device.
Cards supported：
PHILIPS Company:MF1ICS50、FM1108、MF1ICS70、contactless CPU card\contact CPU card.
E7 IC card reader widely used in financial payment、E-commere payment system、One-Card
consume system and supply chain management.
E7 password keyboard is the smart IC Card Reader，meet ISO14443A and ISO 7816 standard， support contactless IC card，such as Mifare s50、s70、Utrlight and CPU card，and contact CPU card. E7 smart IC Reader contains LCD display（2 rows）and simple keyboard,，that meet the demand of entering the password or consumption data and displaying the results in the processing of user’s operation. And E7 smart IC Reader supports USB interface that meets HID protocol. In order to improve safety factor, users can configurate a standard SAM card that meets ISO 7816-3 and GSM11.11 protocol in the device.
Cards supported：
PHILIPS Company:MF1ICS50、FM1108、MF1ICS70、contactless CPU card\contact CPU card.
E7 IC card reader widely used in financial payment、E-commere payment system、One-Card
consume system and supply chain management.
2. Features Support Protocol：ISO14443 A/ ISO7816 Recognition Distance：0-50mm Physical Interface: USB or Serial port Communication Rate：9600bps～115200bps Operating System: Windows 98 、 Me 、 2K 、 XP 、 2003、Vista and Linux LED Display：128*64 dot matrix display LCD screen (can display two lines in both Chinese and English) Working Frequency：13.56MHZ Working Voltage：DC5V ± 10% Data Storage Capacity：the standard configuration of storage is 2K bytes in the reader (can expand according to user’s demand) Status Display：LED light，indicate power or communication status，user can control buzzer Dimensions：Length×Width×Hight：155*100*80 mm Weight：about 322g |
Want to Know more details about this product
