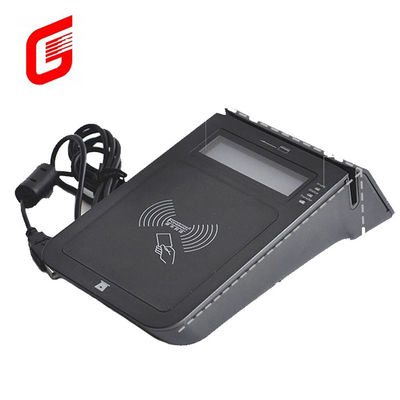

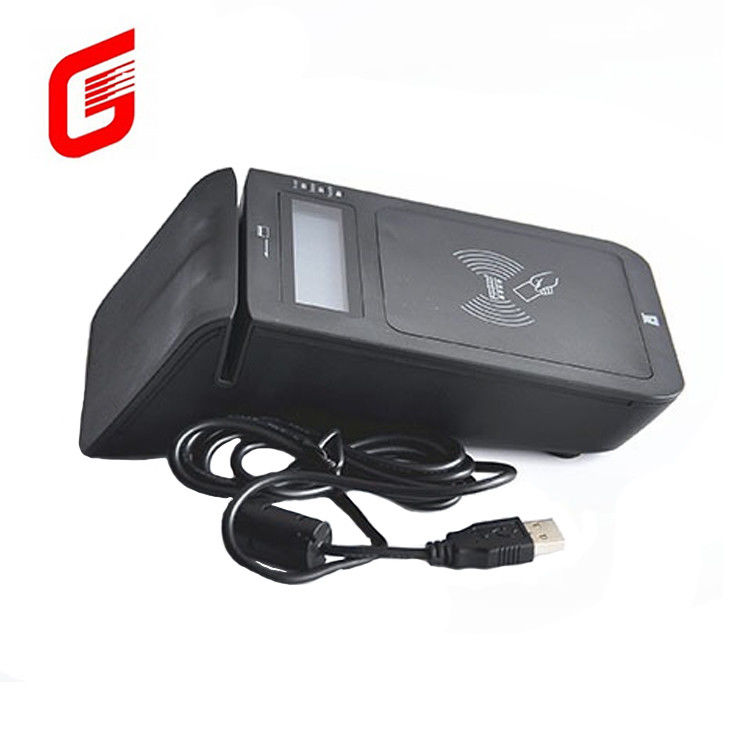

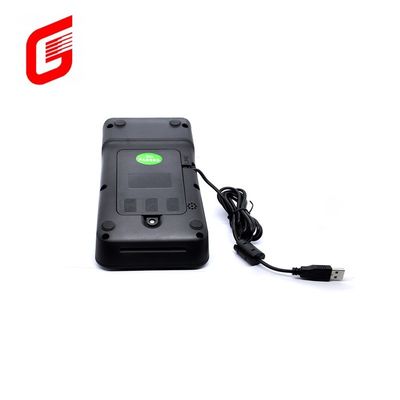

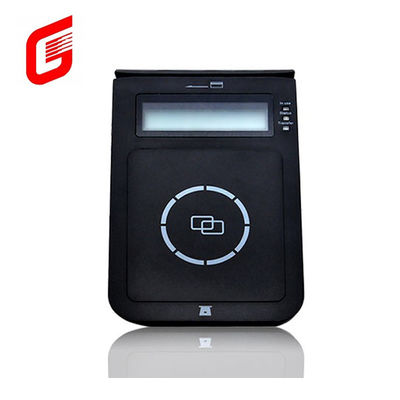

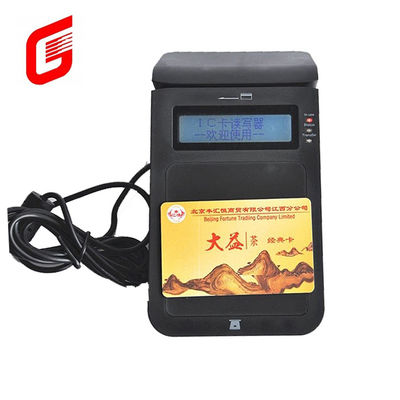

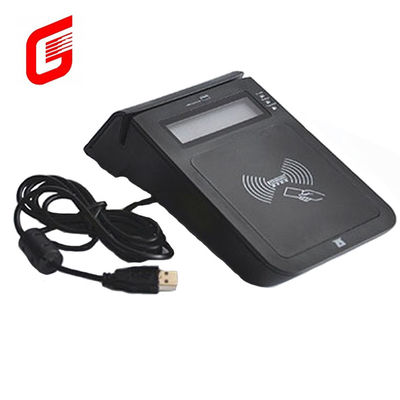

USB RFID E7 Contactless Smart IC Card Reader Writer XP Operating System Compatibility
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | GS |
| Certification: | // |
| Model Number: | E7-BU-13-B0 |
Payment & Shipping Terms:
| Price: | $98.00/pieces 1-99 pieces |
|---|---|
| Packaging Details: | Export Carton with Product packing and Foam inside |
| Supply Ability: | 5000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Other Type | Interface: | Usb |
|---|---|---|---|
| Card Slots: | Single | Installation: | External |
| Material: | ABS, Plastic | Product Name: | E7 Card Reader Writer With PIN PAD |
| Support Card Type: | Type-A Non-contact IC Card And Contact CPU Card, SLE5542 / 5528 Card | Color: | Black |
| Support Protocol: | IS014443A / IS07816 | Secure Card Issuance: | Support Up To 3 GSM11.11 Compliant PSAM Card Sockets |
| Communication: | USB | Liquid Crystal Display: | LCD Screen |
| Operating System: | Windows 98, Me, 2K, XP, 2003, Vista And Linux. WinCE | Working Voltage: | DC5V +/- 10% |
| Working Frequency: | 13.56MHz | Port: | ChongQing |
Product Description
E7 password keyboard is the smart IC Card Reader,meet ISO14443A and ISO 7816 standard,support contactless ic card,such as Mifare s50,s70,Utrlight and CPU card,and contact CPUcard. E7 smart IC Reader contains LCD display(2 rows)and simple keyboard,,that meet the demand of entering the password or consumption data and displaying the results in the processing of user’s operation. And E7 smart IC Reader supports USB interface that meets HID protocol.In order to improve safety factor, users can configurate a standard SAM card that meets ISO78163 and GSM11.11 protocol in the device
Configuration instructions
Support card type:
14443A: CPU cards such as Mifare One S50, S70, Utralight, Desfire, Pro, Plus; FM1208.
Support card type:
14443A: CPU cards such as Mifare One S50, S70, Utralight, Desfire, Pro, Plus; FM1208.
Contact card: 4442/4428, CPU card.
support system:
Windows 98, Me, 2K, XP, 2003, Vista, 7 (32-bit and 64-bit), CE and Unix and Linux, Android
Function configuration:
With a large deck and three PSAM decks, 144 * 32 dot matrix LCD display, 32-bit single-chip microcomputer, faster reading and writing speed.
support system:
Windows 98, Me, 2K, XP, 2003, Vista, 7 (32-bit and 64-bit), CE and Unix and Linux, Android
Function configuration:
With a large deck and three PSAM decks, 144 * 32 dot matrix LCD display, 32-bit single-chip microcomputer, faster reading and writing speed.
Technical Parameters | ||
Name | E7 all-in-one smart IC card reader | |
Support card type | Type-A non-contact IC card and contact CPU card, SLE5542 / 5528 card | |
Support protocol | IS014443A / IS07816 | |
Secure card issuance | it can support up to 3 GSM11.11 compliant PSAM card sockets | |
Communication | USB | |
Liquid crystal display | LCD screen (can display two lines of Chinese and English) | |
Working frequency | 13.56MHz | |
Working voltage | DC5V +/- 10% | |
Storage data capacity | The standard configuration of the internal memory of the reader is 490 bytes (can be expanded according to user demand) | |
Status display | LED indicator, indicating power or communication status, user-controllable buzzer | |
Operating system | Windows 98, Me, 2K, XP, 2003, Vista and Linux. WinCE | |
Size | 175mm X 100mm X 80mm | |
Net / gross weight | 300g / 350g | |
