High Definition Thermal PVC Smart Card Printer with 16.7 Million Color Variations
Product Details:
| Place of Origin: | Chongqing, China |
Payment & Shipping Terms:
| Price: | $2,200.00/pieces 1-99 pieces |
|---|
|
Detail Information |
|||
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Interface Type: | Usb | Max Paper Size: | CR-80 85*54cm |
| Black Print Speed: | 850 Cards/hour | Color Print Speed: | 138 Cards/hour |
| Max. Resolution: | 300dpi | Warranty(Year): | 1-Year |
| After-sales Service: | Others | Software Development Kit (SDK): | Yes |
| Input Hopper Card Capacity: | 100 Cards (0.76mm) | Output Hopper Card Capacity: | 200 Cards (0.76mm) |
| Printing Method: | HDP Dye-Sublimation/ Resin Thermal Transfer | Colors: | Up To 16.7 Million/ 256 Shades Per Pixel |
| Print Speed( YMC With Transfer): | Up To 24 Seconds Per Card/ 150 Cards Per Hour | Print Speed( Ymck With Transfer): | Up To 29seconds Per Card/ 124 Cards Per Hour |
| Print Speed( YMCKK With Transfer): | Up To 40 Seconds Per Card/ 90 Cards Per Hour | Accepted Standard Cards Sizes: | CR-80 (3.370 L* 2.125 W) / 85.6mm*54mm |
| Print Area: | Over- The-edge On CR-80 Cards | Accepted Card Types: | ABS, Laminated PVC, PET, PETG, |
Product Description

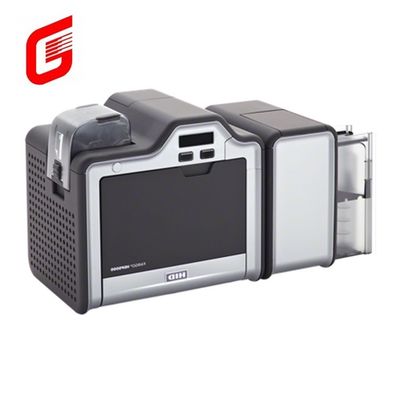

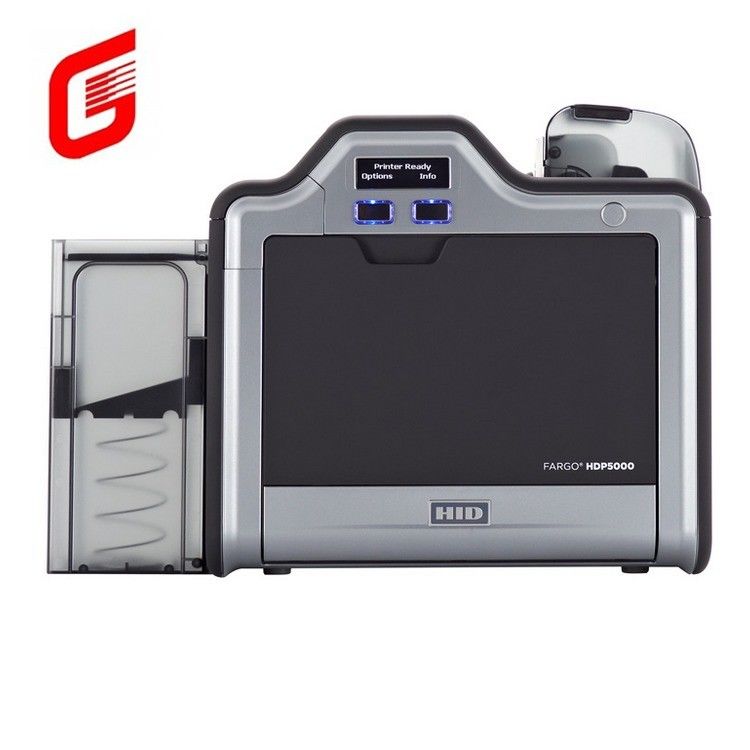

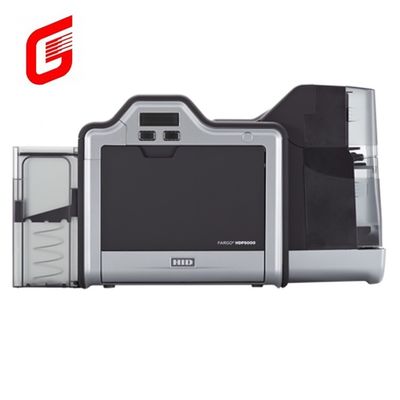

The powerful HDP5000 printer is ideal for printing built-in chip cards, producing high-resolution cards and providing the highest picture quality. The HDP5000 can be easily upgraded with additional printing, lamination and coding modules.
Superior print quality, reliability and durability, and greater security - With just the affordable and versatile HDP500 printing and encoding, your photo ID card has all of these features.
* * High-Definition PrintTM delivers outstanding print quality, even on cards embedded in electronics, to make your public image more attractive.
* High reliability and durability reduce your total cost of ownership, making high-definition printing suitable for virtually any business area at a reasonable price.

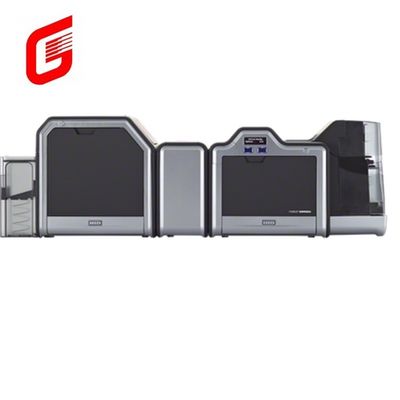

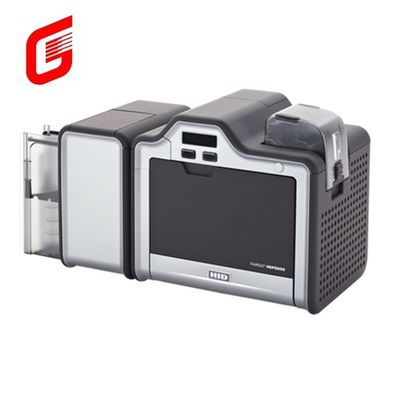

* The printer's versatile modular design meets the changing needs of users. Double-sided printing, single-sided or double-sided lamination and card encoding technology are all field upgradeable.
* Thanks to simple design and intuitive operation, you can easily master it with a little training. Cards, ribbons and laminates are available in a boxed format for easy and fast loading.
Superior print quality, reliability and durability, and greater security - With just the affordable and versatile HDP500 printing and encoding, your photo ID card has all of these features.
* * High-Definition PrintTM delivers outstanding print quality, even on cards embedded in electronics, to make your public image more attractive.
* High reliability and durability reduce your total cost of ownership, making high-definition printing suitable for virtually any business area at a reasonable price.
* The printer's versatile modular design meets the changing needs of users. Double-sided printing, single-sided or double-sided lamination and card encoding technology are all field upgradeable.
* Thanks to simple design and intuitive operation, you can easily master it with a little training. Cards, ribbons and laminates are available in a boxed format for easy and fast loading.
Key Features
The HDP5000 printer/encoder is powerful and ideal for embedding electronic technology cards that produce high-definition cards and provide the highest picture quality. The HDP5000 can be easily upgraded with additional printing, lamination and coding modules.
* Optional single or double-sided simultaneous filming to improve card security, easy and fast operation.
* The two-sided card print option doubles the print area without the need to manually reload the card.
* The SmartScreenTM LCD Control Panel displays useful status messages and prompts.
* Boxed cards can be quickly reloaded or switched to a different card store.
* It can quickly load large-capacity ribbons, membranes and film boxes to avoid waste caused by material damage during
re-spooling.
* Encoding options include magnetic strips, proximity cards, and contact and contactless smart cards.
* In addition to the USB and Ethernet interfaces, the HDP5000 includes an internal print server for secure network printing.
* The included ** Workbench Diagnostic Utility is convenient for printer maintenance. Its Color Assist tool matches spot colors to ensure accurate graphic printing.
The HDP5000 printer/encoder is powerful and ideal for embedding electronic technology cards that produce high-definition cards and provide the highest picture quality. The HDP5000 can be easily upgraded with additional printing, lamination and coding modules.
* Optional single or double-sided simultaneous filming to improve card security, easy and fast operation.
* The two-sided card print option doubles the print area without the need to manually reload the card.
* The SmartScreenTM LCD Control Panel displays useful status messages and prompts.
* Boxed cards can be quickly reloaded or switched to a different card store.
* It can quickly load large-capacity ribbons, membranes and film boxes to avoid waste caused by material damage during
re-spooling.
* Encoding options include magnetic strips, proximity cards, and contact and contactless smart cards.
* In addition to the USB and Ethernet interfaces, the HDP5000 includes an internal print server for secure network printing.
* The included ** Workbench Diagnostic Utility is convenient for printer maintenance. Its Color Assist tool matches spot colors to ensure accurate graphic printing.
HDP5000 card printer parameter | ||
Printing method | HDP Dye-Sublimation/ resin thermal transfer | |
Resolution | 300dpi (11.8 dots/ mm) | |
Colors | Up to 16.7 million/ 256 shades per pixel | |
Printer Ribbon Option | *Full-color , YMC 750 Prints *Full-color, with resin black YMCK 500 prints *Full-color, with two resin black panels, YMCKK 500 prints *Full-color, with resin black and heat seal panel for difficult-to-print surfaces, YMCKH 500 prints *Full-color, with resin black and inhibit panel for signature or other non-printing areas, YMCKI 500 prints *Full-colors with fluorescing and resin black , YMCFK 500 prints *Resin black K 3000 prints | |
HDP Film Options | Clear (1,500 prints), standard Holographic ( 500 prints) Custom Holographic, special order ( 500 prints) | |
Over laminate Options | *Thermal Transfer Over laminate , 25mil thick, 500 prints *PolyGuard Over laminate, 1.0 mil and 6 mil thick, 250 prints ( PolyGuard available in a CR-80 patch size) *All over laminates available in clear, standard holographic design or custom holographic design. | |
Print Speed | Batch Mode: Up to 24 seconds per card/ 150 cards per hour ( YMC with transfer) Up to 29seconds per card/ 124 cards per hour ( ymck with transfer) Up to 40 seconds per card/ 90 cards per hour ( YMCKK with transfer) Up to 35 seconds per card/ 102 cards per hour ( YMCK with transfer and dual-sided , simultaneous lamination) Up to 48 seconds per card/ 75 cards per hour ( YMCKK with transfer and dual-sided, simultaneous lamination) | |
Accepted Standard Cards Sizes | CR-80 (3.370 L* 2.125 W) / 85.6mm*54mm | |
Print Area | Over- the-edge on CR-80 cards | |
Accepted Card Thickness | Print only: 0.30" (30 mil) to 0.50" (50 mil) / 762mm to 127mm Print / Lamination: 0.30" (30 mil) to 0.5" (50 mil) / 762mm to 127mm | |
Accepted Card Types | ABS, Laminated PVC, PET, PETG, proximity, smart and mag stripe cards, optical memory cards Note: ABS and PVC cards are not recommended for use in the HDP5000 Lamination Module . | |
Input Card Cartridge Capacity | 100 cards (0.30") / 762mm | |
Output Hopper Card Capacity | 200 cards (0.30") /762mm | |
Card Cleaning | Replaceable cleaning roller ( included with each prin ribbon) | |
Display | User-friendly, Smart Screen LCD Control Panel | |
Software Drivers | Windows 8/ 7/ Vista ( 32 bits & 62 bit ) / Server 2008& 2003 / XP, Mac OS / v10.6/ v10.5 / Linux | |
Single Wire USB 2.0 Encoding Options | ISO Magnetic Stripe Encoding, Dual High-and low coercivity, Tracks 1.2 and 3 Contactless Smart Card Encoder ( HID ICLASS and MIFARE) ISO 7816 Contact Smart Card Encoder Prox Card Reader ( HID read-only) | |
Interface | USB 2.0 ( high speed) and Ethernet with Internal print server | |
Operating Temperature | 65 to 90 F/ 8celcius to 32 celcius | |
Humidity | 20-80 % Non-condensing | |
Dimension | HDP5000 11.5 " H * 12.25" W* 9.25" D ( 292mm H * 313mm W * 235mm D) HDP5000 + Dual-sided Module : 11.5" H * 17.5 " W * 9.25 " D ( 292mm H * 445 mm W * 235mm D) HDP5000 +Single -Sided Lam Module : 12.75" H * 25" W * 9.25" D ( 324mm H * 635mm W * 235mm D) HDP5000 + Dual-sided Module + Dual-sided Lam Module: 12.75 " H * 30" W * 9.25 " D ( 324mm H * 762mm H * 235mm D) Lam Module : 12.75" H * 12.25" W * 9.25 " D ( 324mm H * 313mm W * 235mm D) | |
Weight | HDP 5000: 16 lbs / 7.3KG HDP5000 + Dual-sided Module: 22 lbs/ 10KG HDP5000 + Single -sided Lam Module : 28 lbs/ 12.7 KG HDP5000 + Dual-sided Module+ Dual sided Lam Module : 36 lbs/ 16.4KG | |
Certifications | UL, CE, IC, FCC , Class -A, CCC, BSMI, KC, MIC | |
Supply Voltage | 100-240 VAC, 3.3A | |
Supply Frequency | 50 Hz/ 60 Hz | |
Warranty | Printer - Three years including one year of free printer loaner support ( U.S only): Optional Extended Warranty Program ( U.S only) Printhead - Lifetime, Unlimited pass | |
Fargo Secure Materials | Fargo Card Printer / Encoder require highly specialized media to function properly. To maximize printed card quality and durability , prin head life and printer/ encoder reliability, use only HID Secure Materials. HID warranties are void, where not prohibited by law, when non-HID Secure Materials are used. | |
Options | Dual card input hopper module > Card Lamination module , single-sided or Dual-sided ( simultaneous). Magnetic stripe encoding. 200 card input hopper. Smart card encoding ( Contact / Contactless) > Dual sided printing, Door and Cartridge locks , Printer cleaning kit Secure propriety consumables system. Custom secure holographic HDP Film and overlaminate | |
Software | FARGO Workbench diagnostic utility with Color Assist spot -color matching. | |
This link is a single-sided model of the HDP5000, excluding the laminator and correction module.
